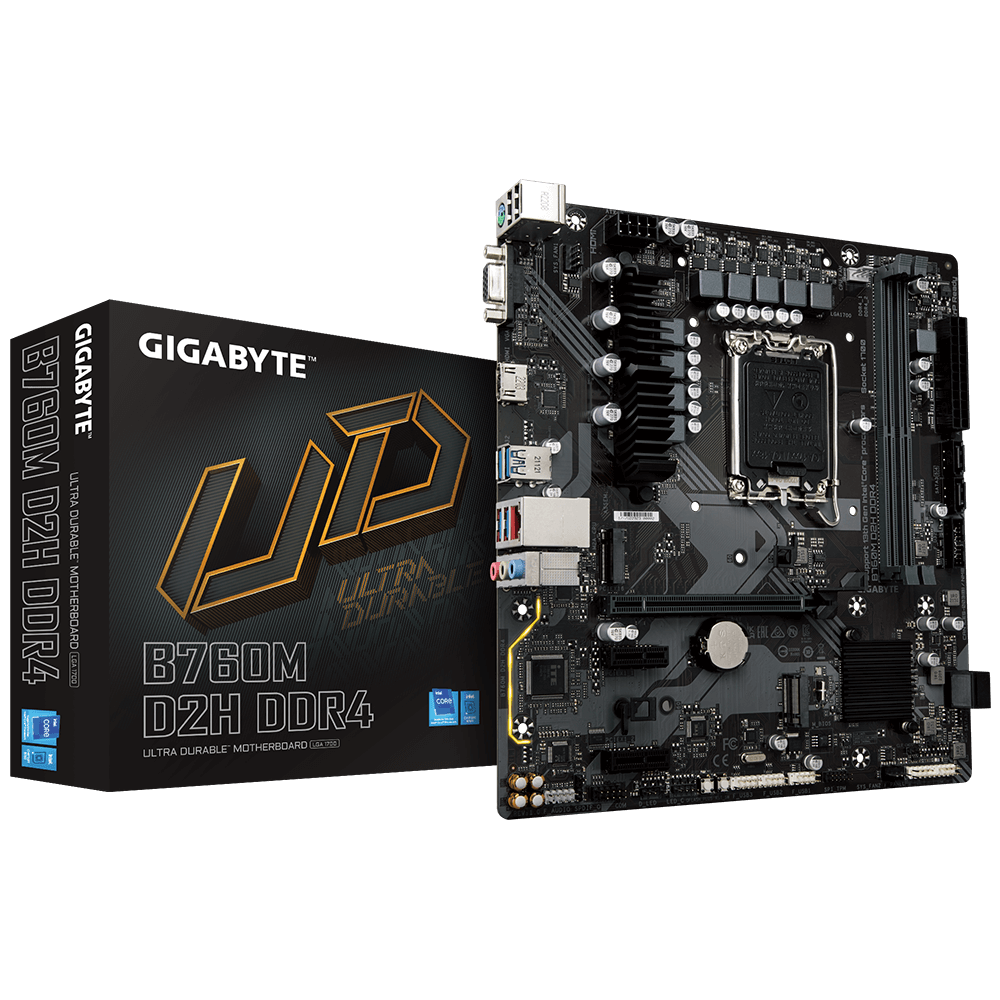

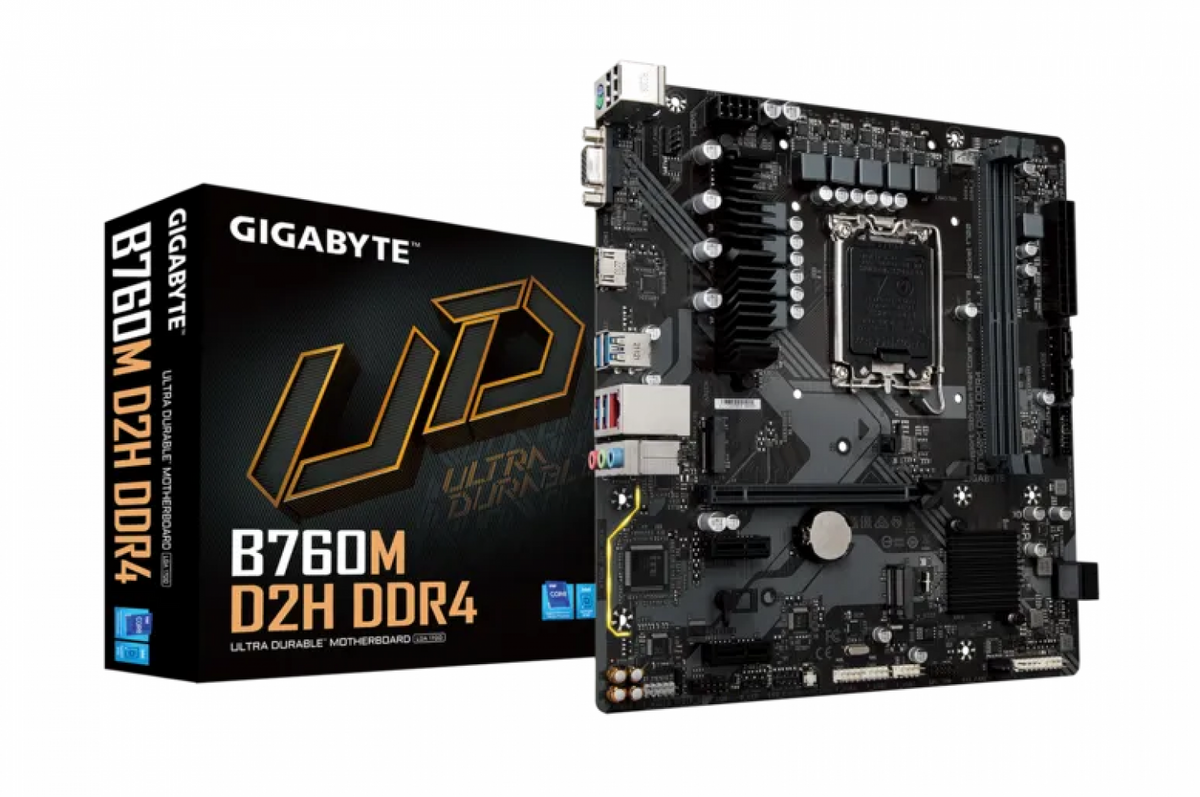

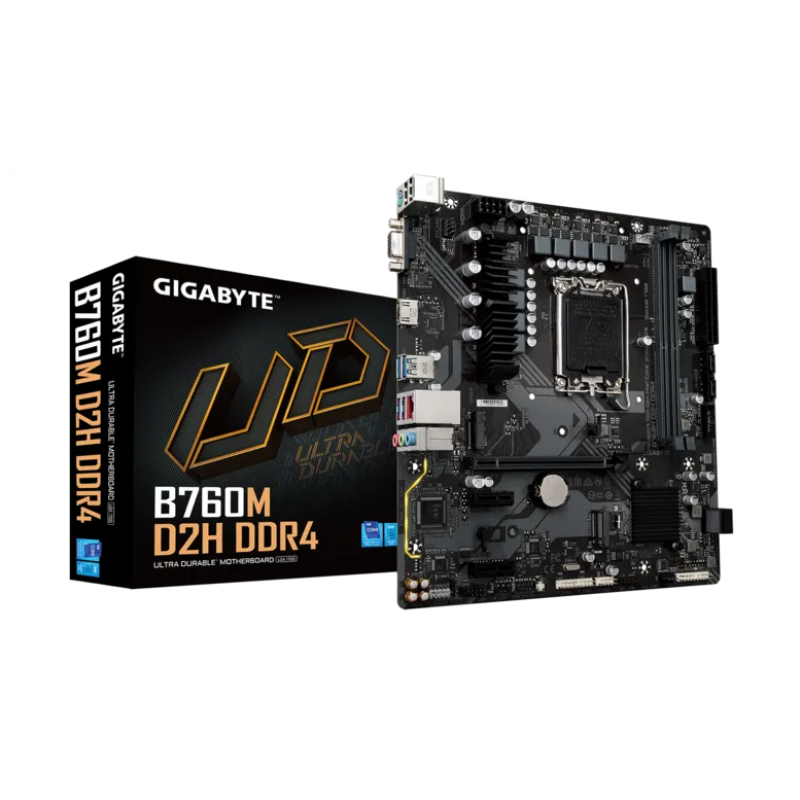

Mother Gigabyte B760M D2H DDR4 1700 (12va/13va/14va Gen) (1293)

Información del producto

Procesador 1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors   2. L3 cache varies with CPU   Chipset   1. Intel® B760 Express Chipset Memoria 1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules   2. 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory   3. Dual channel memory architecture   4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)   5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules   6. Support for Extreme Memory Profile (XMP) memory modules Gráficos Integrados 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Integrated Graphics Processor-Intel® HD Graphics support: 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Audio 1. Realtek® Audio CODEC   2. High Definition Audio   3. 2/4/5.1/7.1-channel   4. Support for S/PDIF Out LAN 1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)   Puertos de Expansión   CPU:   1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16   Chipset:   1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1   Interfaz de Almacenamiento   CPU:   1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)   Chipset:   1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)   2. 4 x SATA 6Gb/s connectors   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices BIOS 1. 1 x 128 Mbit flash   2. Use of licensed AMI UEFI BIOS   3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Características Únicas 1. Support for GIGABYTE Control Center (GCC)   2. Support for Q-Flash   3. Support for Q-Flash Plus   Software Incluido Software Incluido 1. Norton® Internet Security (OEM version)   2. LAN bandwidth management software Sistema Operativo 1. Support for Windows 11 64-bit   2. Support for Windows 10 64-bit Diseño 1. Micro ATX Form Factor; 24.4cm x 22.5cm.
