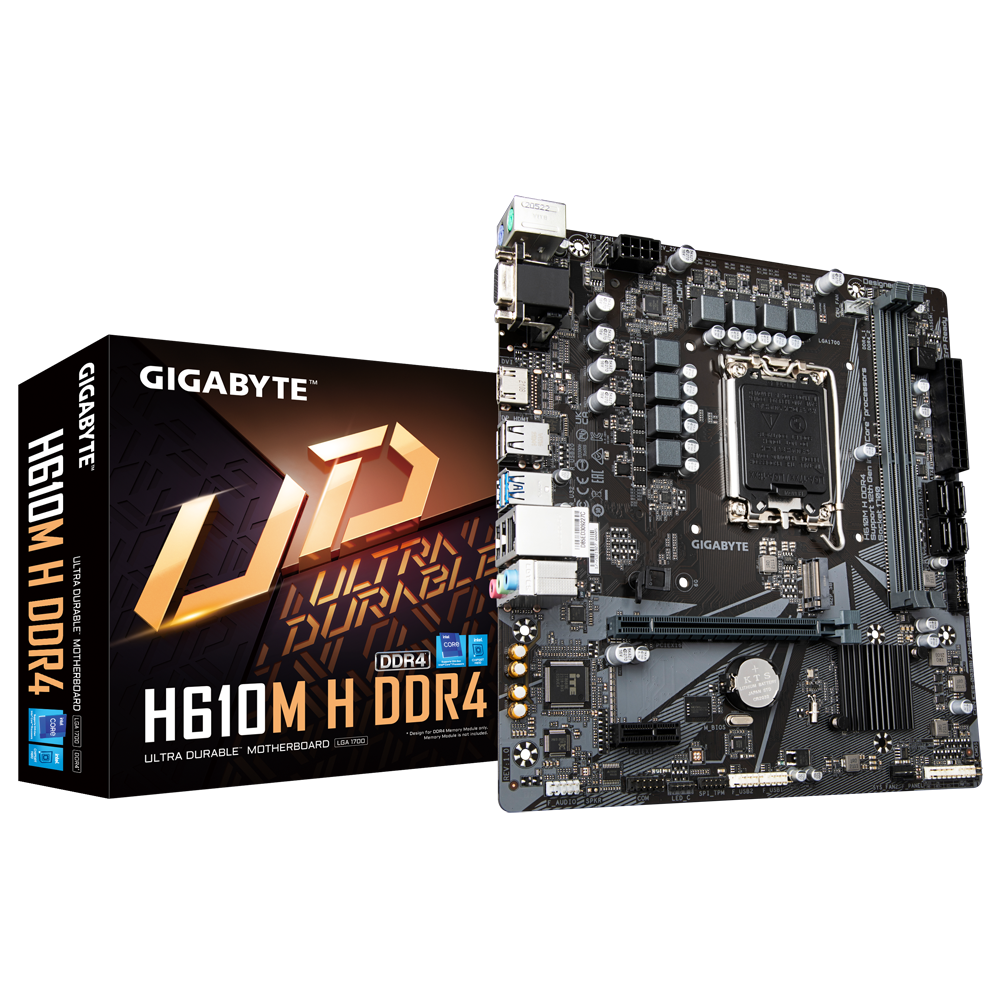

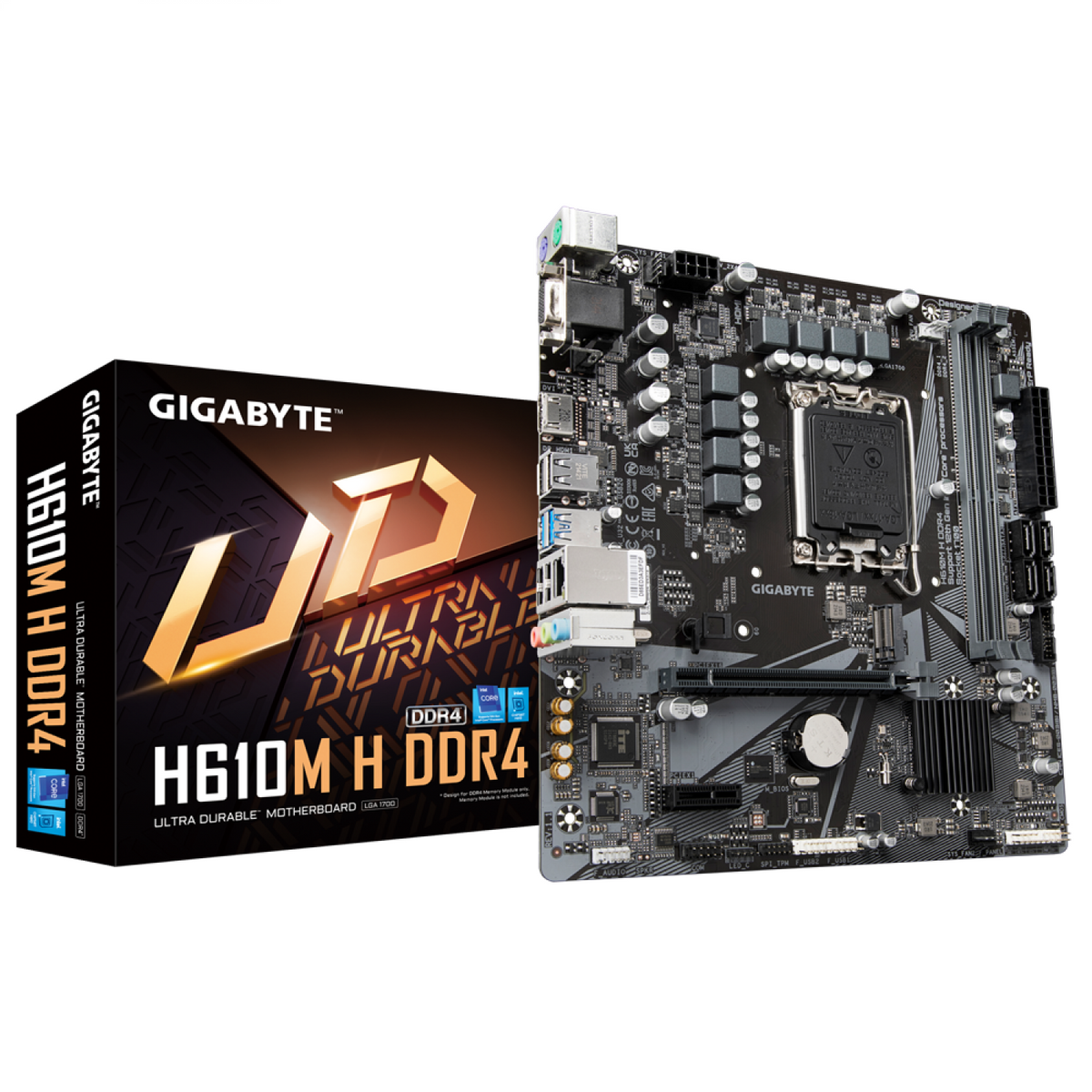

Mother Gigabyte H610M H DDR4 1700 (12va/13va/14va Gen) (0465)

Información del producto

CPU 1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* 2. L3 cache varies with CPU Chipset 1. Intel® H610 Express Chipset Memory 1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Audio 1. Realtek® Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN 1. Intel® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots 1. 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 2. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) Storage Interface Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 2. 4 x SATA 6Gb/s connectors USB Chipset: 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2. 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x M.2 Socket 3 connector 4. 4 x SATA 6Gb/s connectors 5. 1 x CPU fan header 6. 2 x system fan headers 7. 1 x RGB LED strip header 8. 1 x front panel header 9. 1 x front panel audio header 10. 1 x USB 3.2 Gen 1 header 11. 2 x USB 2.0/1.1 headers 12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 13. 1 x serial port header 14. 1 x Clear CMOS jumper Back Panel Connectors 1. 1 x PS/2 keyboard port 2. 1 x PS/2 mouse port 3. 1 x D-Sub port 4. 1 x HDMI 2.0 port 5. 2 x USB 3.2 Gen 1 ports 6. 4 x USB 2.0/1.1 ports 7. 1 x RJ-45 port 8. 3 x audio jacks.
