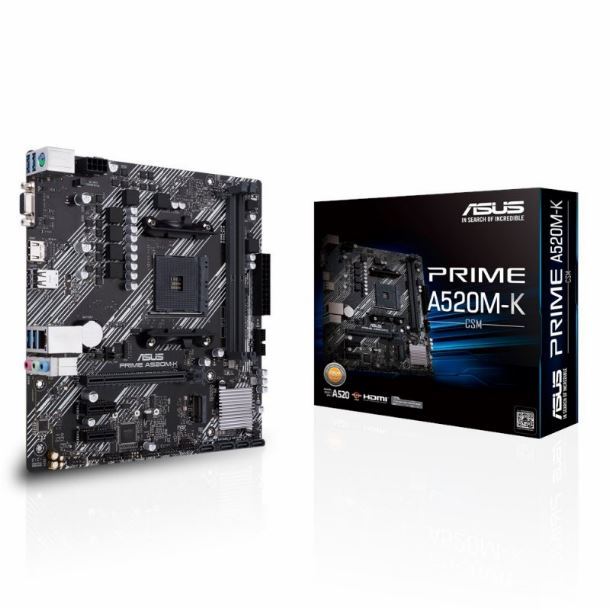

MOTHER ASUS PRIME A520M-K DDR4 AM4

Información del producto

La Asus PRIME A520M-K es un placa placa base con socket AMD AM4 y Chipset A520. Especificaciones: - CPU - Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * - * Refer to www.asus.com for CPU support list - Chipset - AMD A520 - Memory - 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * - Dual Channel Memory Architecture - ECC Memory (ECC mode) support varies by CPU. - * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - * The maximum memory frequency supported varies by processor. - Graphic - 1 x D-Sub - 1 x HDMI 2.1(4K@60HZ) - Expansion Slots - 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors - 1 x PCIe 3.0 x16 (x16 mode) - AMD A520 Chipset - 2 x PCIe 3.0 x1 - Storage - Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports - 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : - 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support - AMD A520 Chipset : - 4 x SATA 6Gb/s port(s), - Support Raid 0, 1, 10 - LAN - Realtek RTL8111H 1Gb Ethernet - ASUS LANGuard - Audio - Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Audio Feature : - - Audio Shielding - - Dedicated audio PCB layers - * Choose the chassis with HD audio module in front panel to support 8-channel audio output. - USB Ports - Rear USB Port ( Total 7 ) - 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) - 2 x USB 2.0 port(s)(2 x Type-A) - Front USB Port ( Total 6 ) - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) - 4 x USB 2.0 port(s)(4 x Type-A) - Software Features - ASUS Exclusive Software - Armoury Crate - AI Suite 3 - - Performance and Power Saving Utility - TurboV EVO - EPU - Digi+ VRM - Fan Xpert - - EZ update - ASUS CPU-Z - AI Charger - DAEMON Tools - Norton Anti-virus software (Free Trial for 60 days) - WinRAR - UEFI BIOS - ASUS EZ DIY - - ASUS CrashFree BIOS 3 - - ASUS EZ Flash 3 - - ASUS UEFI BIOS EZ Mode - ASUS Special Features - ASUS 5X PROTECTION III - - ASUS DIGI+ VRM - - ASUS LANGuard - - ASUS Overvoltage Protection - - ASUS SafeSlot Core - - ASUS Stainless-Steel Back I/O - ASUS Q-Design - - ASUS Q-DIMM - - ASUS Q-Slot - ASUS Thermal Solution - - Aluminum heatsink design - Back I/O Ports - 1 x PS/2 keyboard/mouse combo port(s) - 1 x D-Sub - 1 x HDMI - 1 x LAN (RJ45) port(s) - 1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A) - 4 x USB 3.2 Gen 1 (blue) Type-A - 2 x USB 2.0 - 3 x Audio jack(s) - Internal I/O Ports - 1 x CPU Fan connector(s) - 1 x Chassis Fan connector(s) - 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s connector(s) - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x Front panel audio connector(s) (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel connector - 1 x COM port header - 1 x Speaker connector.
