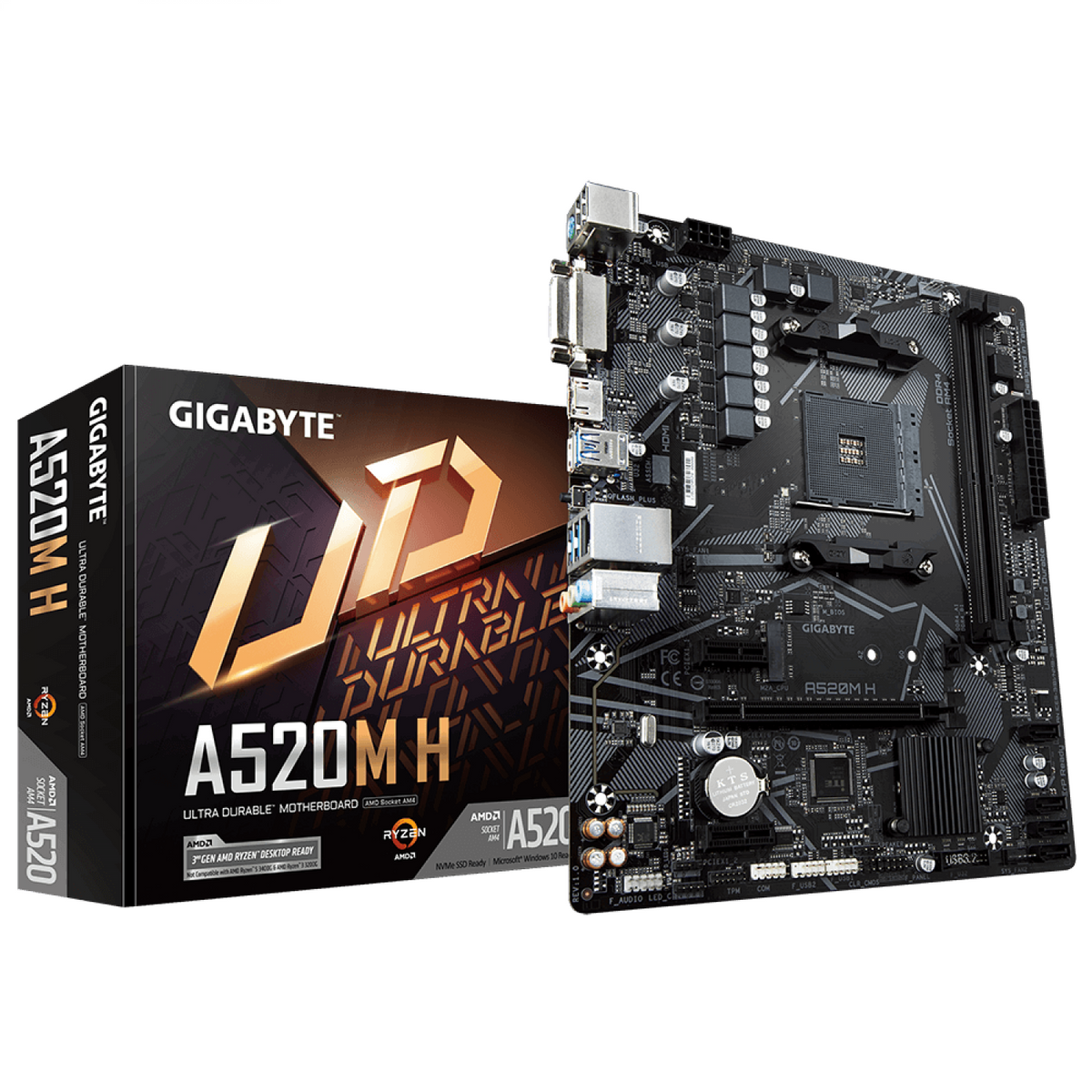

Mother Gigabyte A520M H DDR4 AM4 (Serie 3000/4000/5000) (9683)

Información del producto

Procesador 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors   (Por favor, consulte la "Lista de Soporte de CPUs" para más información.)                       Chipset 1. AMD A520                               Memoria 1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory   2. AMD Ryzen™ 5000 G-series processors:           Support for DDR4 4400(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules   3. AMD Ryzen™ 5000 series processors:           Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules   4. 3rd Gen AMD Ryzen™ Processors:             Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules   5. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:         Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules   6. Arquitectura de memoria Dual Channel           7. Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8       8. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8       9. Soporte para módulos de memoria Extreme Memory Profile (XMP)                                         Gráfica Integrada 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz       * The DVI-D port does not support D-Sub connection by adapter.         2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz       * Support for HDMI 2.1 version, HDCP 2.3, and HDR.                           Audio Realtek® audio codec               Audio de alta definición               2/4/5.1/7.1-channel               * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.                   LAN CPU                 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16       Chipset                 1. 2 x PCI Express x1 slots, supporting PCIe 3                           Interfaz de almacenamiento CPU                 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)   Chipset                 1. 4 x conector SATA 6Gb/s             2. Soporta RAID 0, RAID 1, y RAID 10                             USB CPU   &nbs.
